DC 12V 8 CH Multifunction Power Conditioner Sequencer Switch Interlock Latch Self-Locking Momentary Relay Module (1)

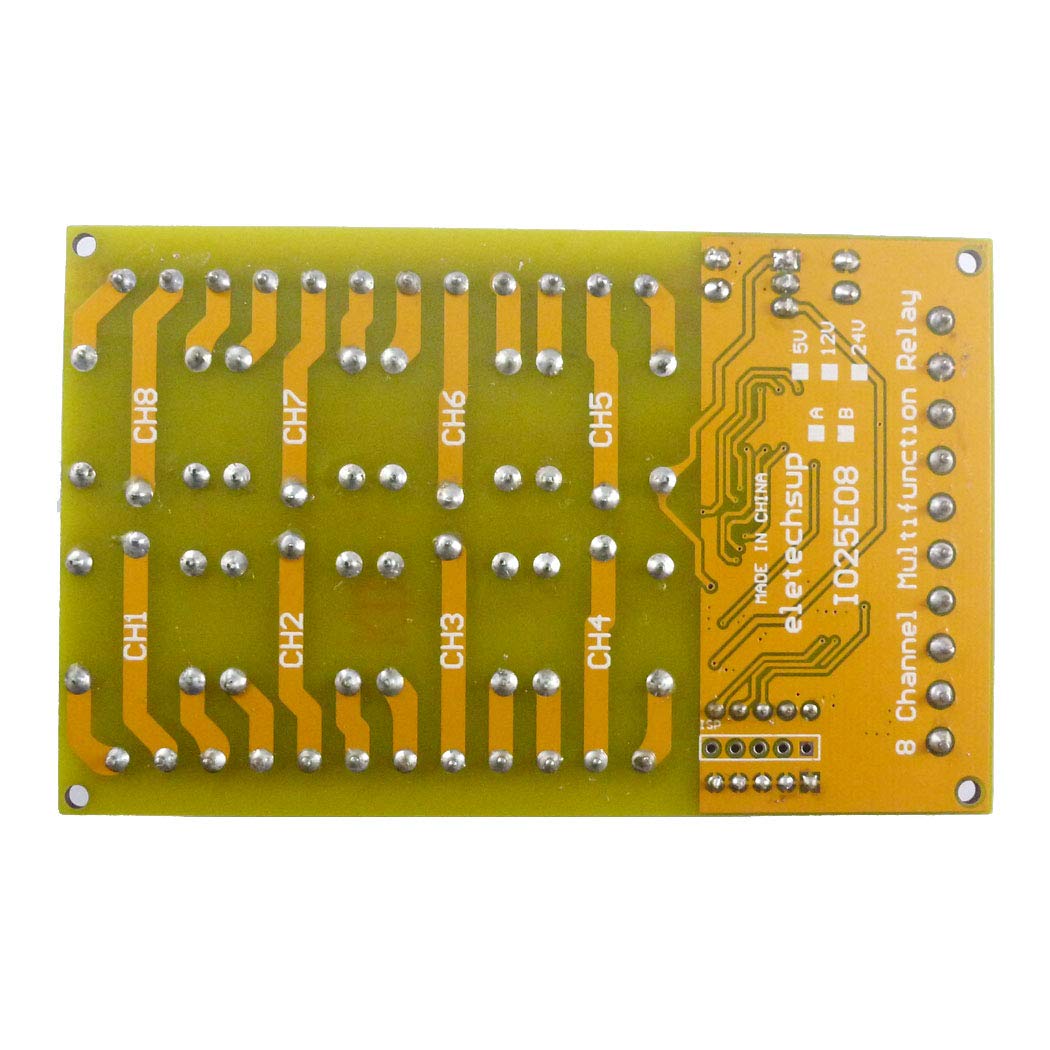

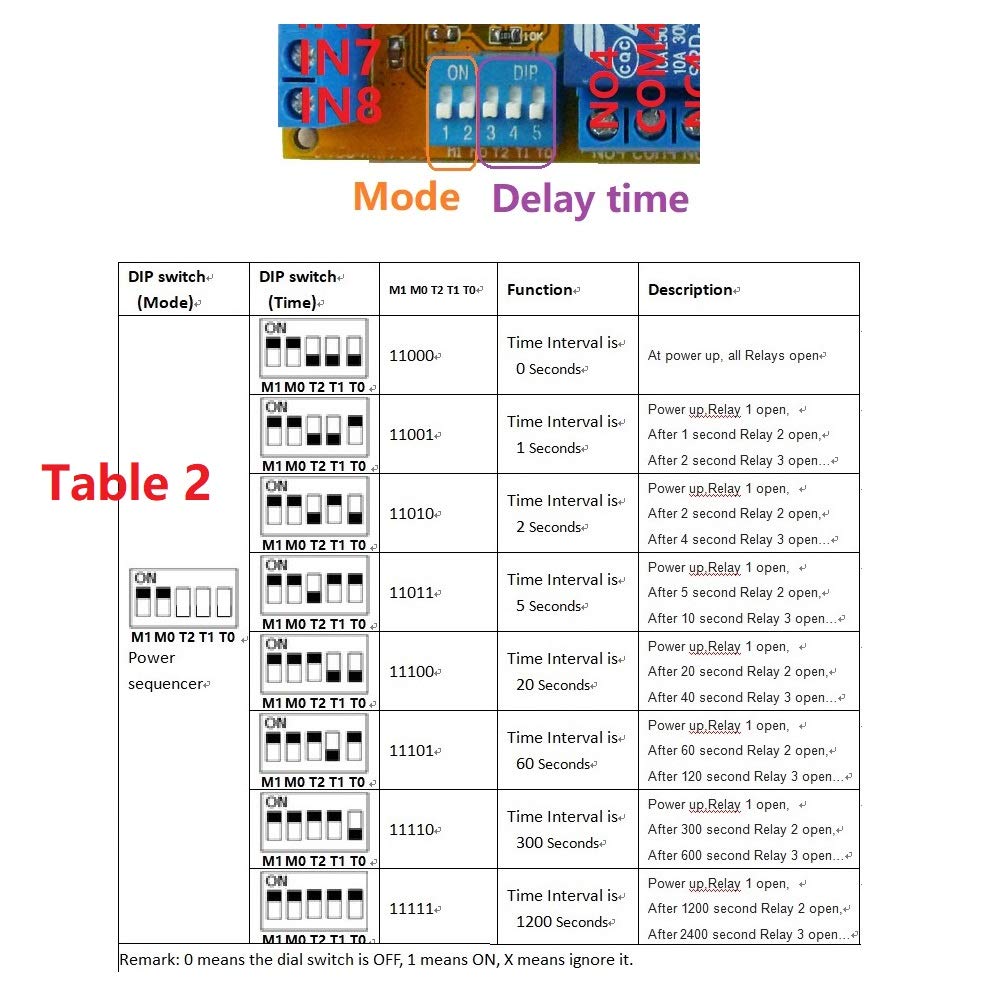

Product Name: DC 12V 8CH Multifunction Power Conditioner Sequencer Switch Interlock Latch Self-locking Momentary Relay ModuleProduct Specifications:1. Operating voltage: DC 12V2. Operating Current(DC 12V) : Standby current 6MA, 1 relay open 35MA, 2 relays open 64MA, 3 relays open 92MA, 4 relays open 120MA, 5 relays open 148MA, 6 relays open 176MA, 7 relays open 204MA, 8 relays open 231MA3. Size: 99 x 62 x 20 mm4. Weight : 119g5. Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6AProduct Features:1. 8 channel relay, each channel independently triggered independent delay, do not interfere with each other.2. 4 kinds of Functional mode: Delay/ Non-locking (Momentary ); Self-locking (Toggle); Inter-locking (Latch); Power sequencer(Relay sequence opens)3. Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)4. The function mode and delay time are selected by the DIP switch.Noun resolved:NO : Relay normally open contactCOM : Relay common contactNC : Relay normally closed contactRelay open: COM connect NO.Relay close: COM disconnect NO.Typical applications:Automotive electronicsAC DC MotorAudio amplifier power supply.Power Conditioner/SequencerLEDSmart HomeEmergency lightingMCU development boardToy carUNO MEGA2560PLChow to use:Select the desired function mode and delay time via the DIP switch on the board.Note: Re-power up after changing the Dip switch

• Operating voltage: DC 12V
• Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A
• The function mode and delay time are selected by the DIP switch.
• Size: 99 x 62 x 20 mm
• Weight : 119g
